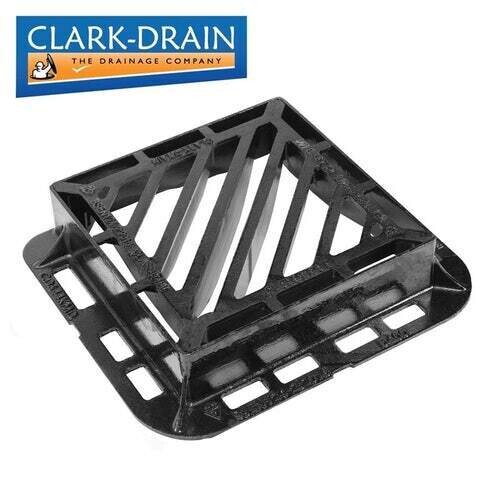

Clark Drain D400 Class Cast Iron Kerbside Gully Grid and Frame 415 x 415 x 100mm
Product Group: Ductile Iron Kitemark Gully Grates & Frames
Sub-Category:
D400 Double-Tri Gully Grates & Frames for use in carriageway kerbside areas and commercial/industrial areas
Material Grade/s:
Spheroid Graphite Iron Grade EN-GJS-500-7 to BS EN 1563:2011
Temporary Bitumen-based paint coating to BS 3416:1991
Weight (kgs):
CLKS 644 KMD = 32, CLKS 644A KMD = 40
Frame Pressure
Bearing Area (N/mm2):
CLKS 644 KMD = 3.8
CLKS 644A KMD = 4.0
Waterway Area (cm2):
Both Versions = 900
Grating Type (as per HA102/00):
R
Load Rating Classification:
D400 (40 tonnes)
Features
BSI Kitemark Certified to BS EN124:1994
Double-tri non-rock 3 point suspension grating design
3-Sided flange design for installing against kerbs
Compliant to the design requirements of the
Dimensions
External Dimensions:
570 (L) x 505 (W) x 100 (H)
Clear Opening:
415 (L) x 415 (W)
Water Way Area:
1076cm2
