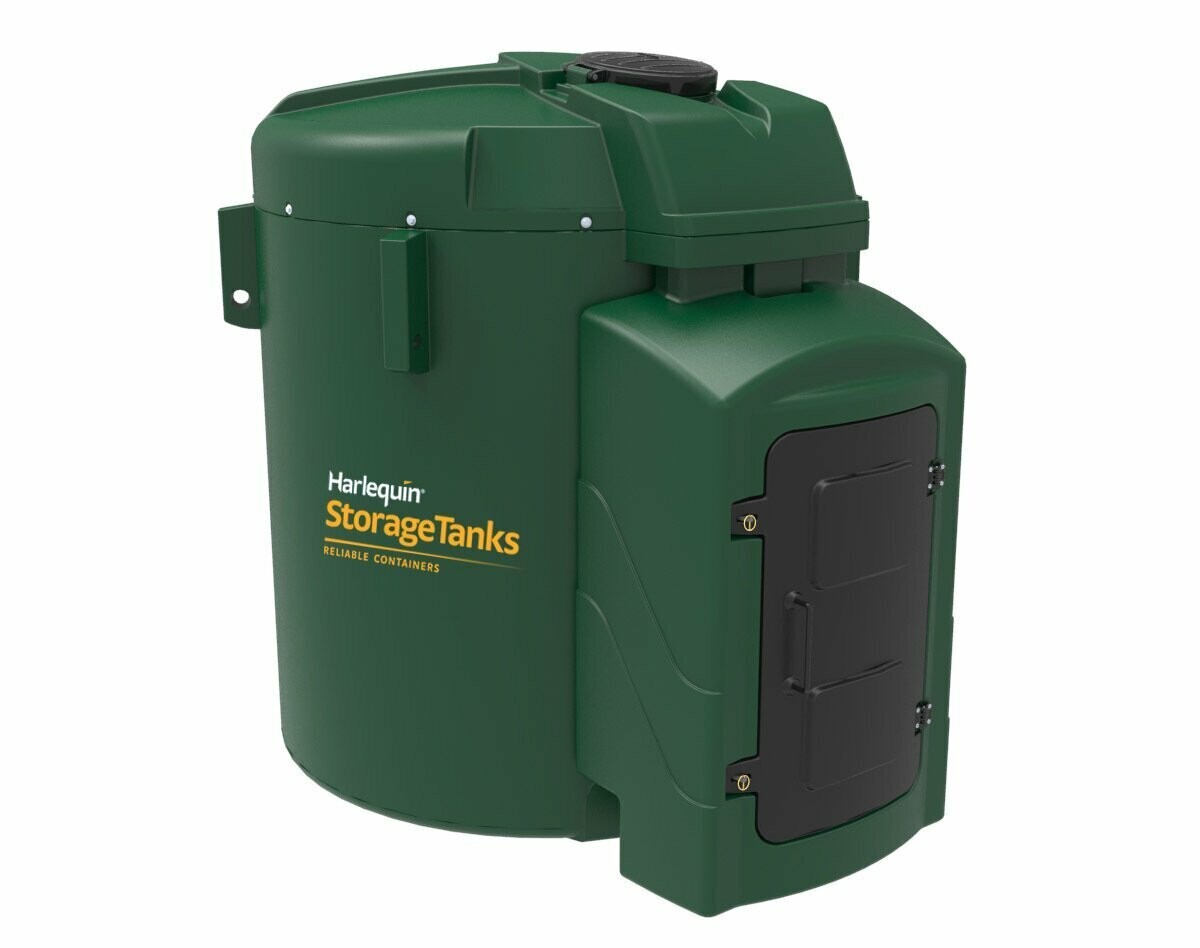

7500FS Fuel Station

Harlequin ' Fuel Stations' are the ultimate in diesel dispensing tanks and technology. Featuring style refuelling convenience and a range of added value technologies as standard, these high specification fuel tanks provide complete diesel storage and diesel dispensing solutions for commercial, industrial and agricultural customers alike.

Harlequin Fuel Stations are available in capacities ranging from 1,300 litres, to 10,000 litres and feature integral bunding as standard.

The 7,500 litre Fuel Station (7500FS) features the following:

• 56L/min 240V fuel pump
• Electronic Level Gauge
• 6m length; 3/4" delivery hose
• Mechanical Flow Meter
• Auto shut-off nozzle
• Bulkhead light
• 2" offset fill point c/w non-return valve and lever ball valve
• 4" lockable inspection port
• LRC overfill prevention probe
• 10 Micron particulate and water filter

Nominal Capacity: 7,683 Litres
Brim-full Capacity: 8,088 Litres
Length: 3,115mm
Width: 2,305mm
Height: 3,020mm
Weight: 550kgs
