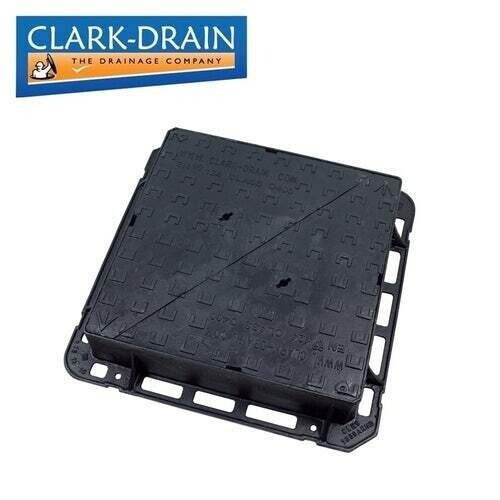

675 x 675 Manhole Cover 100mm - D400

Product Group: Ductile Iron Kitemark Manhole Covers

Sub-Category: D400 Double-Tri Manhole Covers for use in estates and commercial/industrial areas
Material Grade/s: Spheroid Graphite Iron Grade EN-GJS-500-7 to BS EN 1563:2011
Temporary Bitumen-based paint coating to BS 3416
Frame Pressure Bearing Area: CLKS 1659 KMD = 2.8N/mm2
CLKS 1659A KMD = 2.75N/mm2
Polished Skid-Resistance Value
(PSRV): 45+
Load Rating Classification: D400 (40 tonnes)

Features:

- BSI Kitemark Certified to BS EN124:1994 (copy certificate available upon request)
- Non-rock 3 point suspension covers
- Integral lifting key holes (to suit CLKS 552 lifting keys, available separately)
- Available as a locking versions
- Optional “FW” or “SW” badging
- Available

Dimensions

External Dimensions: 827 (L) x 827 (W) x 100 (H)
Clear Opening: 675 (L) x 675 (W)
