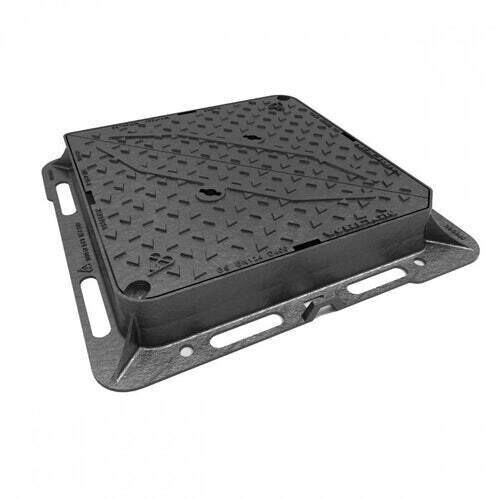

600 x 600 Manhole Cover 100mm - D400

Product Group: Kitemark Manhole Covers

Sub-Category: D400 Double-Tri Manhole Covers for use in estates and commercial/industrial areas
Material Grade/s: Spheroid Graphite Iron Grade EN-GJS-500-7 to BS EN 1563:2011 Temporary Bitumen-based paint coating to BS 3416
Weight: Overall = 40kgs
Covers = 26kgs (pair)

Frame Pressure

Bearing Area: 4.1N/mm2 Polished Skid-Resistance
Value (PSRV): 45+
Load Rating Classification: D400 (40 tonnes)

Features

BSI Kitemark Certified to BS EN124:1994 (copy certificate available upon request)
Non-Rock 3 Point Suspension
Integral lifting key holes (to suit CLKS 552 lifting keys, available separately)
Available with optional Skid-Resistant coating on top surface (ask for details)
